Aluminum Casement Window

RG-KSA-WC100 Edged non-thermal break system double inward opening casement window

Product introduction

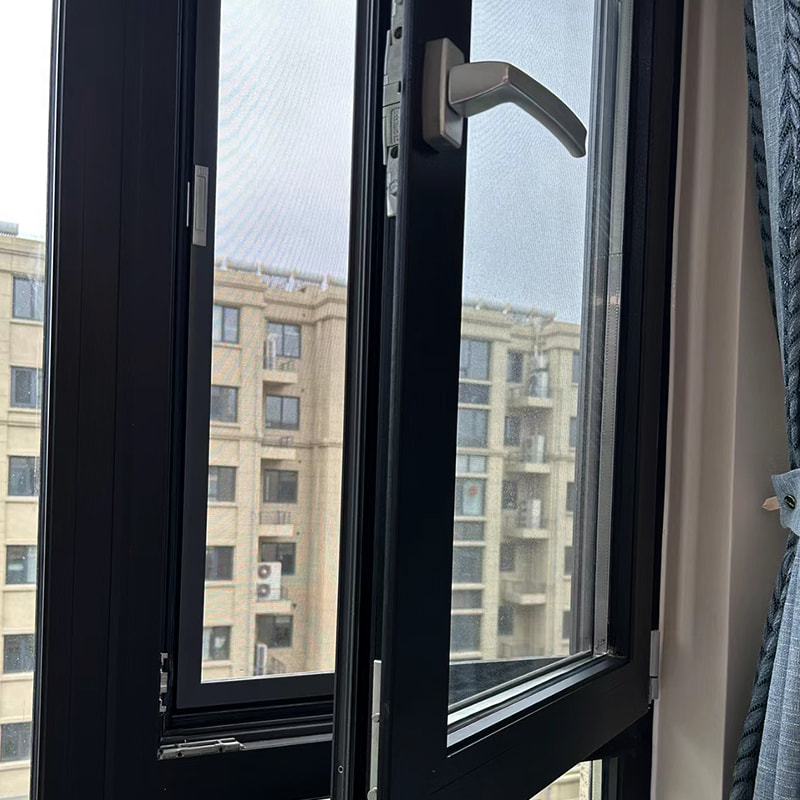

Edged casement windows are more durable and more beautiful, and the cladding slows down the erosion of windows by water vapor. The edge extended can increase the sealing of the window, while also strengthening the window, making it more stable. It also covers the gap between the window and the wall, making the installation easier. It provides more heat and sound insulation. Its double-inside opening modes are beneficial for cleaning and maintenance. The Saudi style 100 system-edged double inward-opening casement windows use 6LOW-E (outer) + 12A + 6 transparent (inner) double-layer tempered glass, and the aluminum profiles are non-insulated. This glass structure has a 6LOW-E outer layer, which helps reduce the entry of outside heat and improves thermal insulation performance. The 12A middle layer can increase the sound insulation effect, and the 6 transparent inner layer maintains transparency. The double-layer structure helps improve sound insulation and reduce noise transmission indoors and outdoors. Non-insulated aluminum profiles are usually relatively economical and suitable for some occasions that do not require high thermal insulation performance. A wraparound design may give the window a more aesthetic appearance while providing additional protection against water and dust.

Glass option:

6LOW-E(outside)+12A+6Clear(inside),double glazed tempered glass

Aluminum profile:

Non-thermal break

Wall thickness:

1.8mm

Width of frame:

100mm

Width of sash:

60mm

Hardware accessories:

KIN LONG

Opening mode:

Horizontal Swing

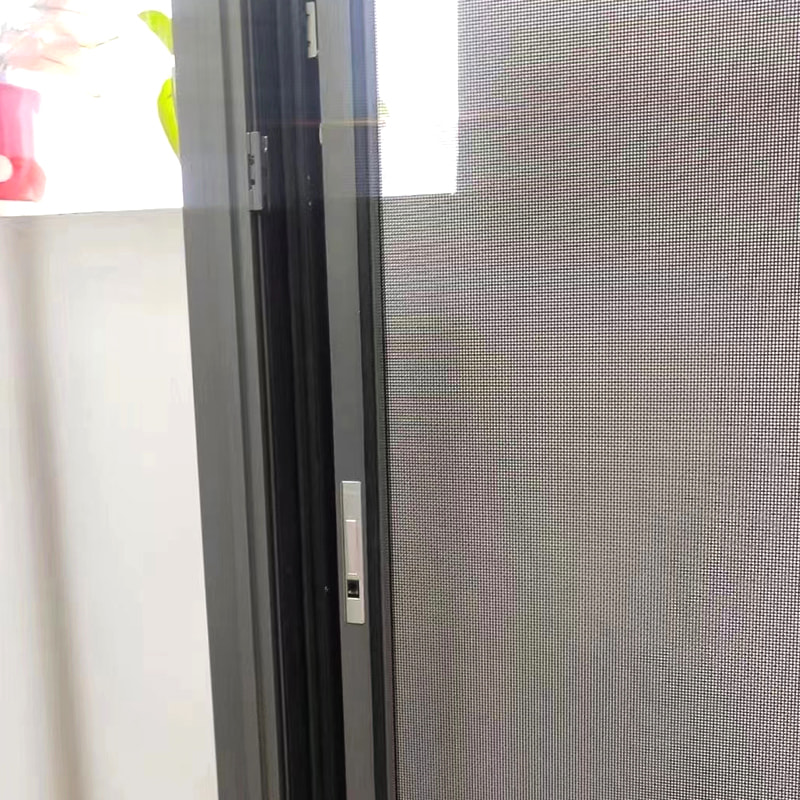

Screen netting material:

Nylon

PREV：RG-WC50 System casement windowNEXT：RG-WC65 Thermal insulation design 65 system casement window
Recommended Products
Premium quality since 2013
Company Profile
Zhejiang Ruiguan Door and Window Co., Ltd.

Established in 2013, Rui Guan is leading China aluminum storm windows manufacturers and custom aluminum storm windows factory specializing in aluminum alloy doors, windows, and curtain walls, dedicated to delivering premium-quality, bespoke products and solutions to our clientele. Since our inception, we have remained committed to fostering technological innovation, continuously enhancing product design, and refining manufacturing processes to meet the evolving demands of our customers.

Equipped with state-of-the-art production facilities and a team of skilled technicians, we offer comprehensive services spanning from design to manufacturing and installation. Our product portfolio includes a wide range of aluminum alloy doors, windows, curtain wall systems, and other architectural exterior decoration solutions tailored to various applications, including commercial buildings, residential projects, and public facilities.

Backed by our standardized factory and extensive CNC production lines, we boast an annual production capacity of 300,000 square meters of aluminum alloy doors and windows, along with 350,000 square meters of curtain walls.

Choosing Rui Guan guarantees access to top-notch products, professional services, and a rewarding partnership experience. We eagerly anticipate collaborating with you to forge a brighter future together!

  • 0㎡

    Factory area

  • 0+

    Project cases

  • 0+

    Technical staff

  • 0

    Annual output value

News

Contact us now

Product Knowledge

What are the benefits of using aluminum storm windows over other types of storm windows?

Durability:

Strength: Aluminum is a strong and durable material that can withstand harsh weather conditions, including high winds, heavy rain, and snow. It doesn't warp, crack, or swell like wood.
Corrosion Resistance: Aluminum is naturally resistant to rust and corrosion, especially when coated with protective finishes, making it suitable for coastal areas and regions with high humidity.

Lightweight:

Ease of Handling: Aluminum storm windows are lightweight, making them easier to handle and install compared to heavier materials like wood.

Low Maintenance:

Minimal Upkeep: Aluminum requires minimal maintenance compared to wood, which needs regular painting or staining. Cleaning aluminum storm windows is usually straightforward, requiring only occasional washing with mild soap and water.
Cost-Effectiveness:

Affordability: Aluminum storm windows are generally more affordable than custom wood or high-end composite windows, making them a cost-effective choice for homeowners on a budget.
Energy Efficiency:

Thermal Breaks: Many aluminum storm windows are designed with thermal breaks (insulating barriers within the frame) that help reduce heat transfer, enhancing energy efficiency and reducing heating and cooling costs.
Additional Insulation: Installing storm windows can provide an extra layer of insulation, improving the overall energy efficiency of existing windows.
Variety of Styles and Finishes:

Aesthetic Options: Aluminum storm windows come in various styles, colors, and finishes, allowing homeowners to choose options that complement their home's architectural style and aesthetic preferences.
Environmental Impact:

Recyclability: Aluminum is a recyclable material, making it an environmentally friendly option. Using recycled aluminum also requires less energy compared to producing new aluminum from raw materials.
Customization:

Flexibility: Aluminum storm windows can be custom-made to fit non-standard window sizes and shapes, providing flexibility in design and installation.
Enhanced Security:

Added Protection: The additional layer provided by storm windows can enhance the security of a home by making it more difficult for intruders to break through.
Noise Reduction:

Sound Insulation: Aluminum storm windows can help reduce external noise, providing a quieter indoor environment.

How do aluminum storm windows perform in extreme weather conditions?

Strength and Durability:

Aluminum is inherently strong and durable, able to withstand high winds, heavy rain, snow, and even hail. The material's resilience makes aluminum storm windows less prone to damage compared to other materials like wood or vinyl.
Corrosion Resistance:

Aluminum is naturally resistant to rust and corrosion, especially when treated with protective coatings or finishes. This resistance helps aluminum storm windows maintain their structural integrity over time, even in areas with high humidity or coastal environments where saltwater exposure is a concern.
Sealing and Insulation:

Properly installed aluminum storm windows create a tight seal around the existing windows, helping to prevent drafts, moisture intrusion, and air leakage. Some aluminum storm windows are designed with thermal breaks, which further enhance insulation by reducing heat transfer between the interior and exterior of the home.
Impact Resistance:

While aluminum itself is sturdy, some aluminum storm windows may incorporate additional features to enhance impact resistance, such as reinforced corners or laminated glass. These features help protect against damage from flying debris during storms or other extreme weather events.
Weatherproofing:

Aluminum storm windows are often equipped with weather-stripping and durable seals to prevent water infiltration and maintain a watertight barrier against rain, sleet, and snow. Properly maintained seals ensure that the interior of the home remains dry and comfortable, even in severe weather conditions.
Heat Resistance:

Aluminum has a high melting point and excellent heat resistance, making it well-suited for withstanding exposure to intense sunlight and high temperatures without warping or deforming.
Thermal Performance:

While aluminum is not as inherently insulating as some other materials like wood or vinyl, aluminum storm windows can still contribute to energy efficiency by providing an additional layer of insulation and reducing heat loss or gain through windows.
